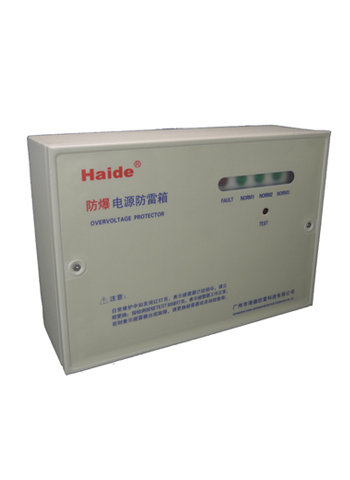

Crate-type explosion-proof power supply lightning protection box
Electric surge protector of low-voltage distribution system, which is in the form of a box, is explosion proof and designed according to IEC standard. It has invalidation detection indication, overflowing and overheating protection with powerful discharge capacity of lightning current. It's applicable to the protection of buildings' general supply system against lightning. It is very convenient to be maintained. It connects with the circuit in parallel and has no limit to the power of equipment fixed later.
|
Model
|
HD-D380(220)B-XSF60
|
HD-D380(220)C-XSF40
|
HD-D380(220)C-XSF20
|
HD-D380/220C-XSF
|
|
Nominal working voltage Un
|
380V/220V
|
380V/220V
|
380V/220V
|
380V/220V
|
|
Maximum continuous working voltage Uc
|
385V/275V
|
385V/275V
|
385V/275V
|
385V/275V
|
|
Nominal discharge currentIn（8/20ms）
|
30KA
|
20KA
|
10KA
|
20KA
|
|
Maximum discharging currentImax（8/20ms）
|
60KA
|
40KA
|
20KA
|
40KA
|
|
Voltagprotection level Up
|
2KV
|
1.6KV
|
1.2V
|
2.1KV
|
|
Prepositive overflowing protection
|
63A
|
32A
|
16A
|
32A
|
|
Overall dimension
|
260×180×85mm
|
|
Response time Ta
|
≤25ns
|
|
Operating temperature range Tup
|
-40℃至+70℃
|
|
Working order indication
|
Green light means normal working, red light is fault indication.
|
|
Section of minimum installed conductor
|
6m2 Multi-folded wire
|
|
Explosion proof function
|
Available
|
|
Protection grade
|
IP20
|
|
Sheathing material
|
Metal spraying
|
|
Mode of connection
|
Parallel connection
|
|
Protection mode
|
4+0/3+1/1+1/2+0
|
Ground the null line repeatedly when Long-distance overhead incoming lines enter buildings.
Plug the power phase line (L) and null line (N）into corresponding connector of the electric surge protector and make sure it's firm and reliable. Connect the ground terminal of arrester with the ground lead of lightning protection well (recommended earth resistance ≤4Ω).
Suggested specification of the lead wire: no less than 6mm2, short and straight.
