Model

HD-BUPS8/10

HD-BUPS6/7

HD-BUPS6/5

HD-BUPS4/4

Nominal working voltage Un

380V

380V

380V

380V

Maximum continuous working voltage Uc

385V

385V

385V

385V

Nominal discharge current In （8/20μs）

40KA

30KA

30KA

20KA

Maximum discharging current Imax（8/20μs）

80KA

60KA

60KA

40KA

Voltage protection level Up

2.4KV

1.6KV

1.6KV

1.2KV

Prepositive overflowing protection

63A

63A

32A

32A

Power

10KW

7KW

5KW

4KW

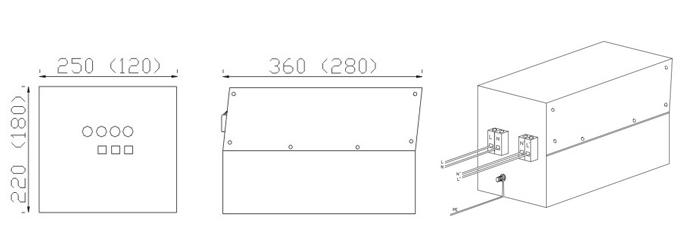

External dimension

360*250*230mm

Response time Ta

≤25ns

Operating temperature range Tup

-40℃至+70℃

Working status indication

Green light means work normally,red light means fault indicaiton.

Section of minimum installed conductor

6mm2 multi-folded wire

Sheathing material

Metal spraying

Mode of connection

series connection

Protection mode

Full-protection
