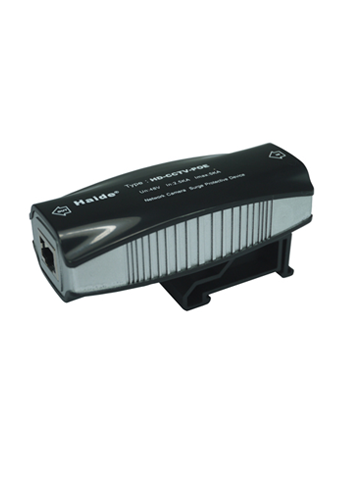

Model

HD-CCTV-POE/A

Based on IEC61643-11/IEC61643-21，SPD

III/T3

C2/D1

Power line

Network line

Nominal working voltage Un

48V

48V

Maximum continuous working voltage Uc

60V

60V

Nominal discharge current In （8/20μs）

2.5KA

2.5KA

Maximum discharging current Imax（8/20μs）

5KA

5KA

Voltage protection level Up

200V

150V

Rated load current IL

1A

Drain current

＜5μA

Response time Ta

＜25ns

＜1ns

Insertion loss

≤0.2dB

Insertion resistance

1Ω

Bandwidth FG

100M

Protection grade

IP30

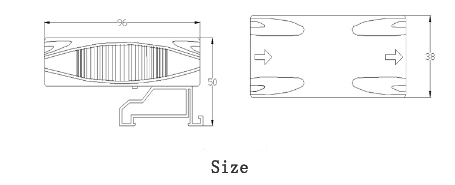

External dimension

96*50*38mm

Sheathing material

Shielding plastic fire-proof material

Operating temperature range Tup

-40℃to+70℃

Interface mode

RJ45

Number of guard wire

45，78 wire或1,2,3,6 wire

1,2,3,6 wire

Fixed way

Guide
