Model

HD-XNET-RJ45/4

HD-XNET-RJ45/8

Rated voltage un

5V

12V

Maximum sustained voltage Uc

12V

15V

Nominal discharge current In（8/20ms）

2.5KA

300A

Maximum discharging current Imax（8/20ms）

5KA

600A

Voltage protection level Up

（X-X）≤70V

（X-X）≤85V

（X-G）≤400V

（X-G）≤85V

Series impedance R

1Ω

無

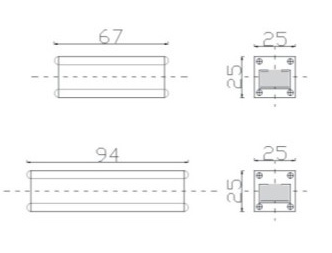

Dimension

94×25×25mm

67×25×25m

Response time Ta

≤1ns

Insertion loss

≤0.2dB

Operating temperature range Tup

-40℃至+70℃

Number of guard wire

1,2,3,6 wire

8-wire full protection

Protection grade

IP20

Sheathing material

Shielding metallic aluminum

Mode of connection

Connection in series

Interface mode

RJ45
