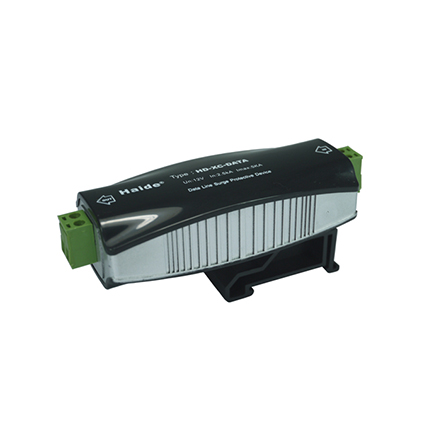

Data line surge protector
This
product is suitable for the protection of Monitor platform, decoding
lines, access control data lines, background music, video intercom,
smart watch, a wide-used card and fire alarm circuits.It can prevent the
damage of line induction overvoltage equipment due to earth potential
increase and has low output residual voltage,little insertion loss and
double overcurrent protection.
|
Model
|
HD-XC-DATA
|
|
Nominal working voltage Un
|
6.8V
|
12V
|
24V
|
|
Maximum continuous working voltage Uc
|
7.5V
|
15V
|
32V
|
|
Nominal
discharge current In (8/20ms)
|
5KA
|
5KA
|
5KA
|
|
Maximum
discharge current Imax(8/20ms)
|
10KA
|
10KA
|
10KA
|
|
Rated load
current
|
1.5A
|
1.5A
|
1.5A
|
|
Voltage protection level Up
|
(X-X)
|
53V
|
110V
|
150V
|
|
(X-G)
|
350V
|
350V
|
350V
|
|
Response time Ta
|
≤0.1ns
|
|
Insertion loss
|
≤0.2dB
|
|
Insertion resistance
|
≤1Ω
|
|
Number of protection lines
|
2,3
|
|
Protection grade
|
IP30
|
|
Interface mode
|
Connection terminal
|
|

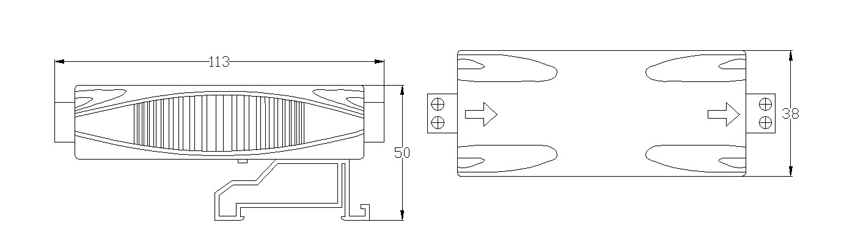

External dimension
|
96*25*25/113*50*38mm
|
|
Sheathing material
|
Shielding metallic aluminum / Flame retardant
thermoplastic material
|
Installation method:
Put
an arrester in series at the leading end of the interface of lines of
the protected equipment.”OUT” is equipment end and “IN” is incoming line
end.Connect the arrester ground terminal and lightning protection
ground lead well (suggested earth resistance≤4Ω).
